Timecode

Definition and Purpose of Timecode

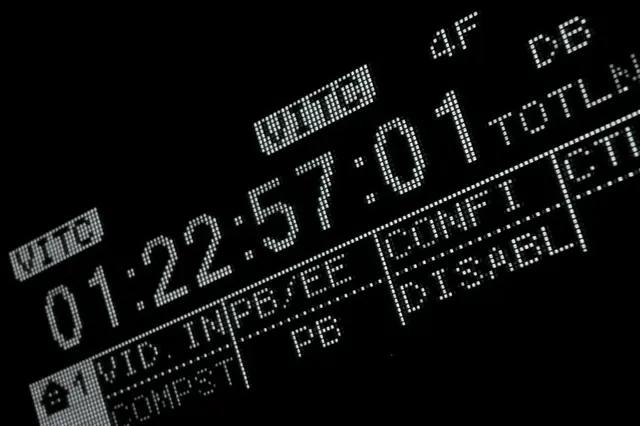

Timecode represents a fundamental digital indexing system that assigns unique timestamps to each frame of video and audio content. Operating as a precise digital clock, it records hours, minutes, seconds, and frames in the format HH:MM:SS:FF. This standardized timing reference enables seamless synchronization between multiple recording devices on set and streamlines post-production workflows.

The primary function of timecode extends beyond simple timekeeping. Professional productions rely on timecode to:

• Maintain perfect synchronization between multiple cameras
• Align audio recordings with video footage
• Enable automated assembly of multi-camera sequences
• Facilitate precise editing decisions
• Create accurate reference points for sound design and visual effects

Evolution of Timecode Technology

Timecode has undergone significant technological advancement since its introduction in the 1960s. Initially developed for quadruplex videotape machines, the system has evolved through several key stages:

First Generation (1960s)

• Longitudinal Timecode (LTC)
• Basic synchronization capabilities
• Limited to tape-based workflows

Digital Revolution (1980s-1990s)

• Vertical Interval Timecode (VITC)
• Enhanced accuracy and reliability
• Integration with early digital systems

Modern Implementation (2000s-Present)

• Network Time Protocol (NTP) integration
• Wireless synchronization capabilities
• Advanced drift compensation
• Cloud-based collaborative workflows

The Role of Timecode in Professional Filmmaking

Modern filmmaking demands precise synchronization across increasingly complex production environments. Timecode serves as the backbone for:

Production Efficiency

• Instant synchronization of multiple recording devices
• Automated slate marking and take identification
• Real-time monitoring of recording status

Quality Control

• Frame-accurate synchronization verification
• Drift detection and compensation
• Recording continuity maintenance

Workflow Optimization

• Automated media organization
• Simplified multi-camera editing
• Efficient sound replacement and ADR
• Streamlined visual effects integration

The integration of timecode systems significantly reduces post-production time, minimizes human error, and ensures consistent quality across complex productions. From independent documentaries to large-scale feature films, time code remains an indispensable tool in professional media creation.

Technical Foundations of Timecode

SMPTE Timecode Format Explained

The Society of Motion Picture and Television Engineers (SMPTE) timecode format consists of an eight-digit numeric sequence displaying hours:minutes:seconds:frames (HH:MM:SS:FF). Each frame receives a unique address, enabling precise identification within a sequence. The format supports:

• 24 fps (film standard)
• 25 fps (PAL standard)
• 29.97 fps (NTSC drop-frame)
• 30 fps (NTSC non-drop)

Drop-frame timecode compensates for NTSC color television's actual frame rate of 29.97 fps by skipping specific frame numbers to maintain accurate timing.

Frame Rates and Synchronization Standards

Professional synchronization standards accommodate various frame rates through sophisticated encoding methods:

Linear Time Code (LTC)

• Recorded as audio-frequency signals
• Maintains stability at high tape speeds
• Supports all standard frame rates
• Readable during fast-forward and rewind

Vertical Interval Timecode (VITC)

• Embedded within video signal's vertical blanking interval
• Frame-accurate at still frame
• Provides two user-definable data bits
• Supports additional metadata storage

Digital Timecode

• Enhanced stability through digital encoding
• Direct compatibility with modern NLE systems
• Supports metadata embedding
• Facilitates cross-platform compatibility

Clock Accuracy Requirements in Professional Equipment

Professional timecode equipment must maintain strict timing accuracy to prevent drift and ensure reliable synchronization:

Crystal Oscillator Specifications

• Temperature-compensated crystal oscillators (TCXO)
• Stability rating of ±0.5 ppm or better
• Operating temperature range: -20°C to +50°C
• Aging rate less than 1 ppm per year

Accuracy Thresholds

• Broadcast Standard: ±1 frame per 24 hours
• Cinema Standard: ±1 frame per 8 hours
• ENG Operations: ±1 frame per 4 hours
• Multi-camera Live Events: ±0.25 frames per hour

Professional equipment must maintain these standards across varying environmental conditions, power fluctuations, and extended operation periods to ensure frame-accurate synchronization throughout production and post-production processes.
